MiR Pallet Lift 600
Optimize your internal logistics by automating the internal transportation of pallets and shelves with the MiR Pallet Lift 600 Top Module. MiR600 Pallet Lift autonomously picks up and delivers pallets of different sizes, eg. 40″ x 48″.
Edit Content

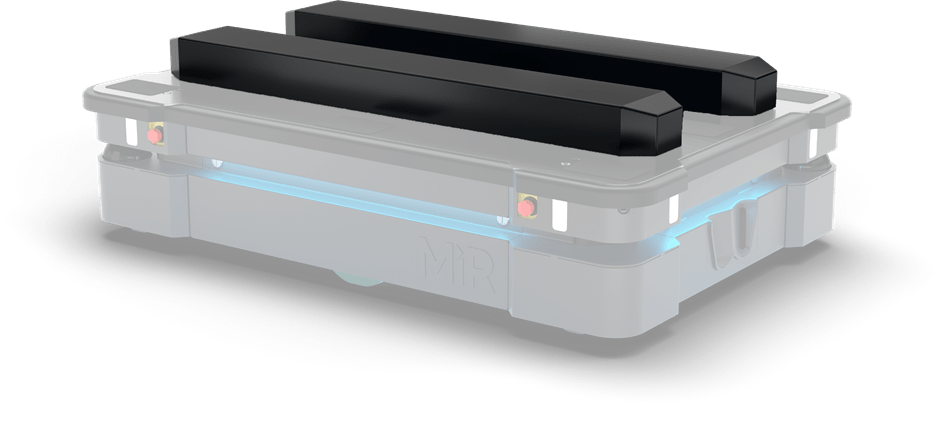

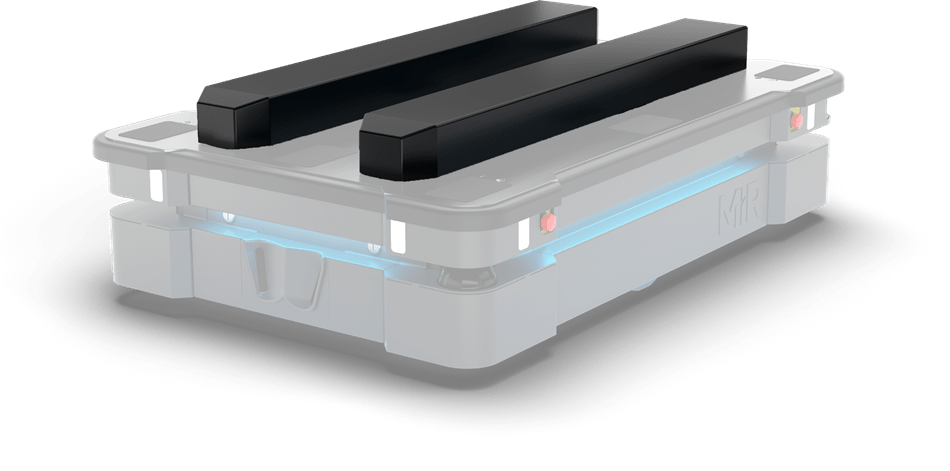

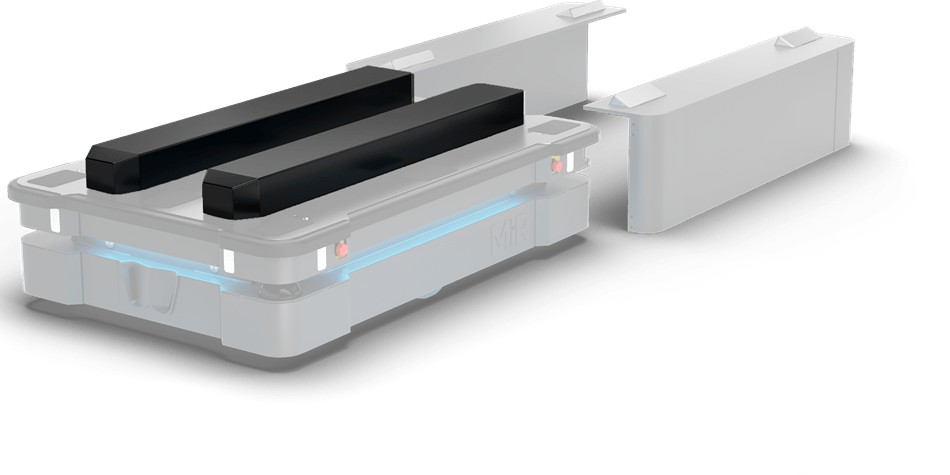

The MiR Pallet Lift 600 top module ensures stable handling and transport of 40″ x 48″ pallets, shelves units and much more. It enables the MiR600 to lift pallets autonomously from the MiR Pallet Rack and lowers the pallet for stable transportation of total payloads up to 500 kg.


Optimize pallet transportation without changing facility layout
With the MiR Pallet Lift 600 top module, the MiR600 picks up, transports and unloads 40″ x 48″ pallets or other objects autonomously, freeing up employees for more valuable tasks. MiR600 has a speed of 2 m/sec (7,2 km/hour) for extremely efficient transportation time. There is no need to change the facility layout when operating the MiR600 as the function of wires, magnets or QR codes is replaced by sophisticated navigation software. Simply download CAD files of the facility to the robot or use its laser scanners to create a map – that’s all it takes to ensure a fast and cost-efficient implementation.

Edit Content
Designated use

For autonomous pickup and unloading of pallets and for lift applications


Specifications may vary based on local conditions and application setup


Frame length

1 304 mm | 51.3 in

Total height in lowered position

94 mm | 3.7 in

Total height in lifted position

156 mm | 6.1 in

Lifting height

60 mm | 2.4 in

Lift Length

1 174 mm | 46.2 in

Lift width

710 mm | 28 in


Maximum lift payload

500 kg | 1 100 lbs


Number of lift cycles (with maximum payload)

Minimum 90 000

Lifting speed

Up: 4.0 s

Down: 3.2 s


Pallet dimensions

Supported with Lift Pallet Rack: 1 016 x 1 219 mm | 40 x 48 in. Can be used for different pallet dimensions.
