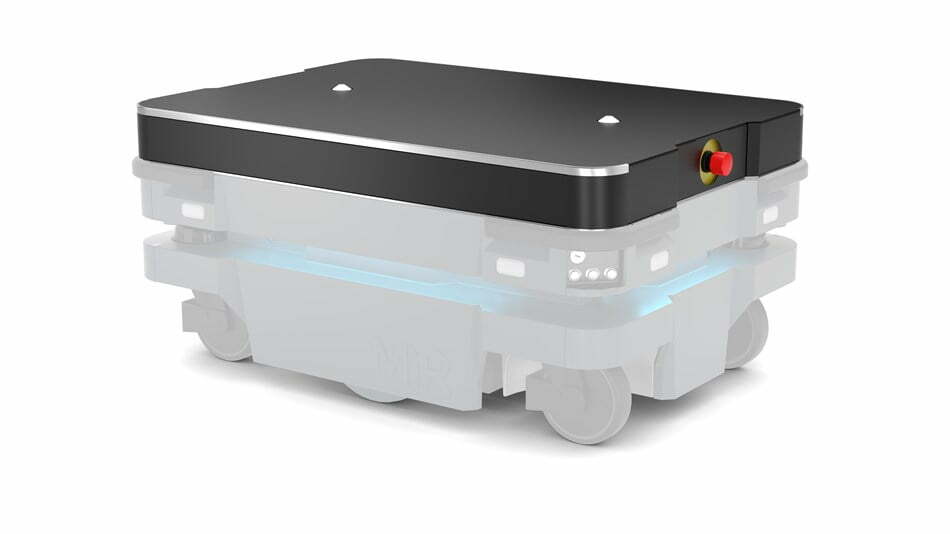

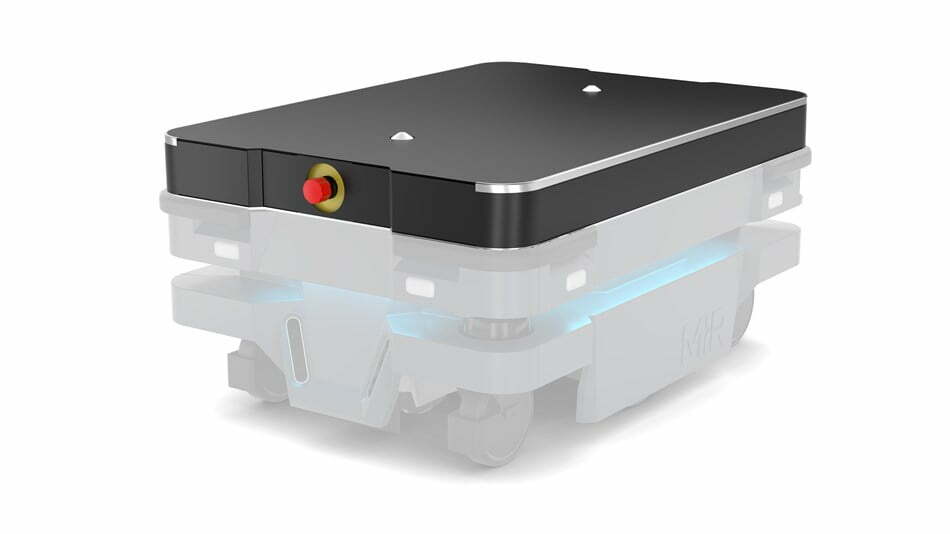

MiR Shelf Carrier 250

Optimize your internal transportation of goods with the MiR Shelf Carrier, that enables the MiR250 robot to collect and deliver shelves in your facility.

DESCRIPTION
SPECIFICATIONS

Edit Content

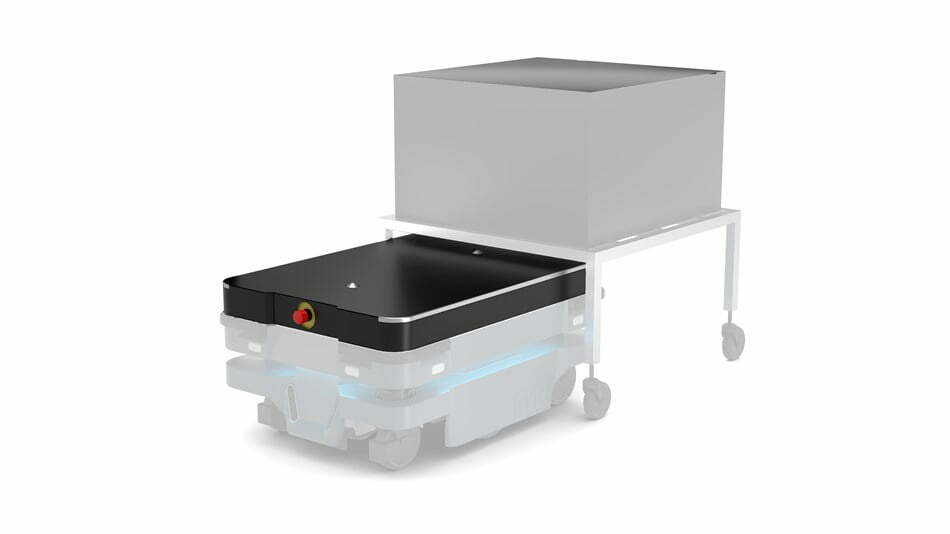

With the MiR Shelf Lift top module, the MiR600 and MiR1350 can autonomously connect to a cart, transport and deliver it wherever you need. It ensures a flexible transportation of your heavy loads of different sizes and your pallets, without the need of a pallet rack. One robot can now pick up an deliver multiple carts, wherever you need it.

Optimize transportation of heavy loads without changing facility layout
With the MiR Shelf Lift top module, the MiR600/1350 picks up, transports and deliver carts autonomously, freeing up employees for more valuable tasks.

There is no need to change the facility layout when operating the MiR robots as the function of wires, magnets or QR codes is replaced by sophisticated navigation software. Simply download CAD files of the facility to the robot or use its laser scanners to create a map – that’s all it takes to ensure a fast and cost-efficient implementation.

The MiR Shelf Lift is designed to lift up to 500/1000 kg.

The weight of any top module mounted on the robot is part of the total payload.

Edit Content

General Information

Designated use	The MiR Shelf Carrier is an anchoring device that makes it possible to lock to shelves and move them
Color	RAL 9005 / Signal Black – glow 10
Disclaimer	Specifications may vary based on local conditions and application setup

Dimensions

Length	778 mm \| 30.6 in
Width	560 mm \| 22.8 in
Height	77 mm \| 3 in
Height with MiR250	370 mm \| 14.6 in
Lifting height	27 mm \| 1.1 in
Weight with MiR250 (without battery or payload)	146 kg \| 321 lbs (without battery or payload)
Load surface	800 × 580 mm \| 31.5 × 22.8 in

Payload

Maximum carrier payload

Up to 300 kg | 661 lbs including the weight of the cart

Performance

Maximum speed (with maximum payload on a flat surface)	1.2 m/s (4.3 km/h) \| 3.9 ft/s (2.7 mph)
Number of lift cycles (with maximum payload)	Minimum 150 000
Power consumption	35 W
Operational corridor width	1 750 mm \| 68.9 in
Operational corridor width for a 90° turn	1 750 mm \| 68.9 in
Operational corridor width for a U-turn	1 750 mm \| 68.9 in
Operational doorway width	With default setup: 1 600 mm \| 63 in
Operational doorway width for pivoting	2 000 mm \| 78.7 in

Environment

IP class

IP 21

Safety
