Nord Modules – PM1000, Pallet Mover

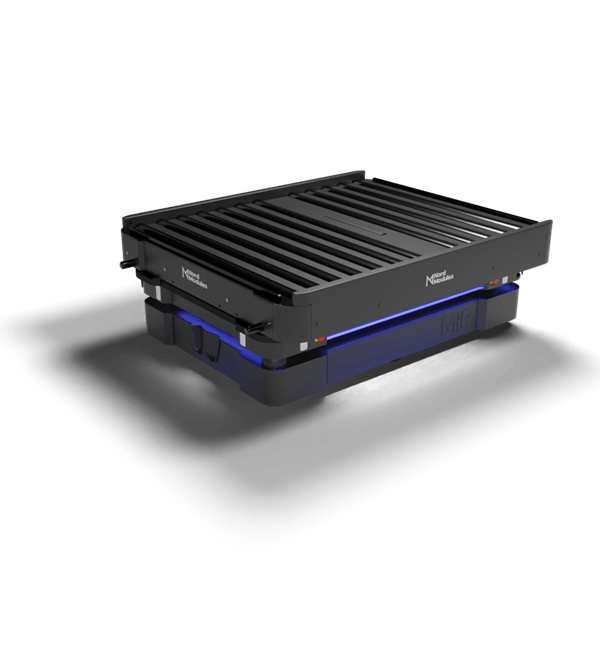

pm1000-mir

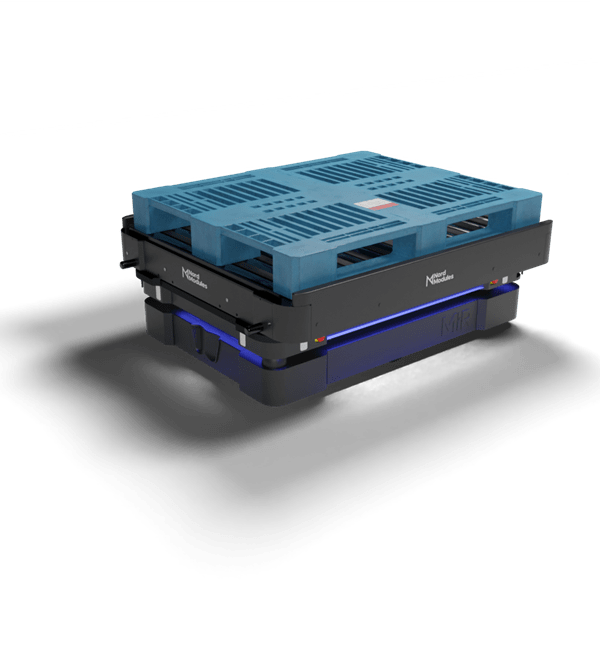

pm1000-mir-with-pallet

Product Description

The Pallet Mover enables the Mobile Robots to pick up and deliver pallets – transporting them to e.g. production lines or packing stations, thereby enhancing internal logistics.

The Pallet Movers integrated technology enables communication to external roller conveyors by wireless signals. A Nord Modules dock target can be installed on an existing conveyor line allowing the PM1000 to successfully dock and receive or deliver a pallet.

This fully automated premium solution allows heavy payload transportation of up to 1180 kg to optimize logistics and production.

Edit Content

Features:

Docking is available from both sides (run-through).
High industrial quality.
Safe heavy payload transportation.
Transport of US-sized pallets.
Loading side, automatic mechanical stop-solution.
PLC controller and servo technology.
Stack-light – information on operation-level.
High level of feedback.
Option: rubber coating of roller

Edit Content

Technical details:

Robot compatibility:
MiR500, MiR600, MiR1000, MiR1350

Nord Modules compatibility:
Pallet Conveyor, Dock Target

Dimensions (LWH):
1340 x 1120 x 165 mm

Max Handling capacity:
1180 kg (See AMR max load)

Speed:
200 mm/sec

Center distance between rollers:
95 mm (94,6 mm)

Transport area:
1060 x 1300 mm (EU-pallets)

Weight:
170 kg

Edit Content

This application is compatible with:

MiR500
MiR600
MiR1000
MiR1350
