TruPhysics – TruLifter Mobile

Product Description

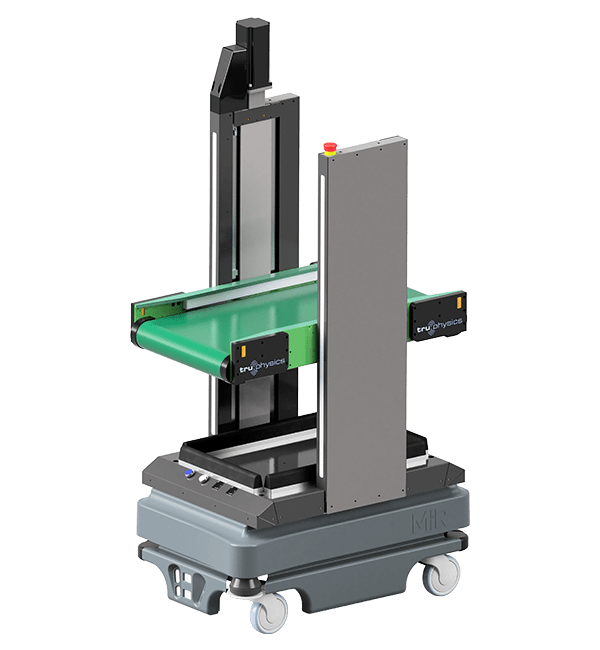

The TruLifter Mobile is the optimal extension for autonomous mobile robots (AMR), for efficient transport and handling in intralogistics and production.

The combination of lifting unit and conveyor belt enables a fully automated loading and unloading process at different heights. The transfer of the loads can be done on both sides and is coordinated by light barriers.

Integrated safety edges prevent hazards in crushing areas and together with the AMR forms a fully comprehensive safety concept.

The TruLifter Mobile is optionally equipped with one or two conveyor belts. Designed for common 400×600 mm and 300×400 mm standard KLT sizes, up to 4 load carriers can be transported in parallel.

With the easy-to-use app, individual positions and entire sequences can be teached in and executed without any programming knowledge.

Edit Content

Features:

Handle the transport of multiple orders matching with pickup places & destination
Automated or manual loading of carriers for intralogistics transports
Variable pickup & place heights of carriers on conveyors

Edit Content

Technical details:

Length: 890 mm
Width: 580 mm
Height: 1338 mm (1695 mm incl. MiR200)
Weight: 65 kg
Payload: 60 kg
Loading/unloading height: Min. 590 mm Max. 1325 mm (incl. MiR200)

Supported Carriers sizes: 400×600 mm | 300×400 mm (other sizes and payloads on request)

Speed: Lifting unit: 40 mm/s Conveyor belt: 300 mm/s

Edit Content

This application is compatible with:

MiR500
MiR600
MiR1000
MiR1350
