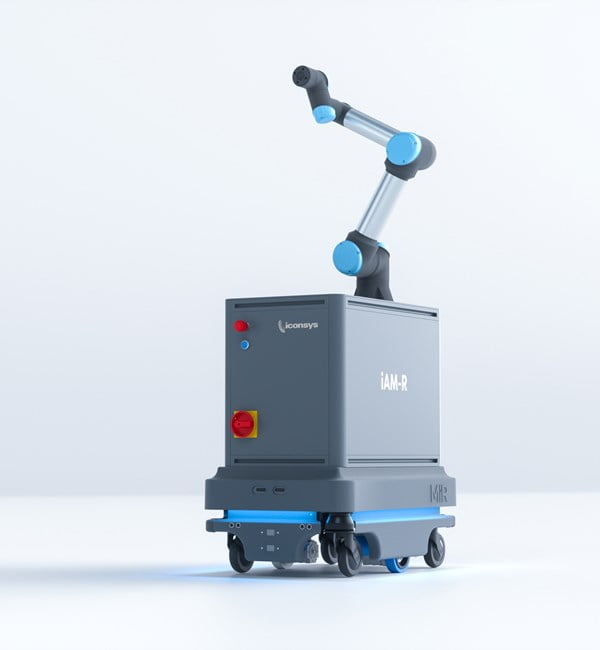

iconsys – iAM-R

Product Description

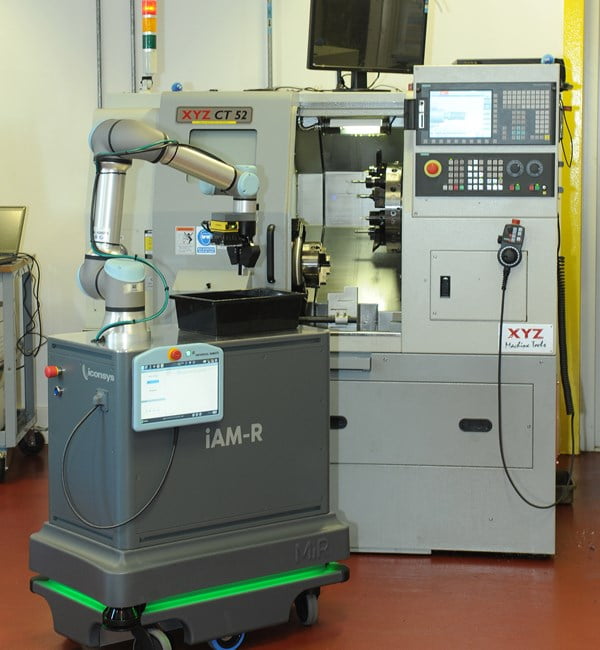

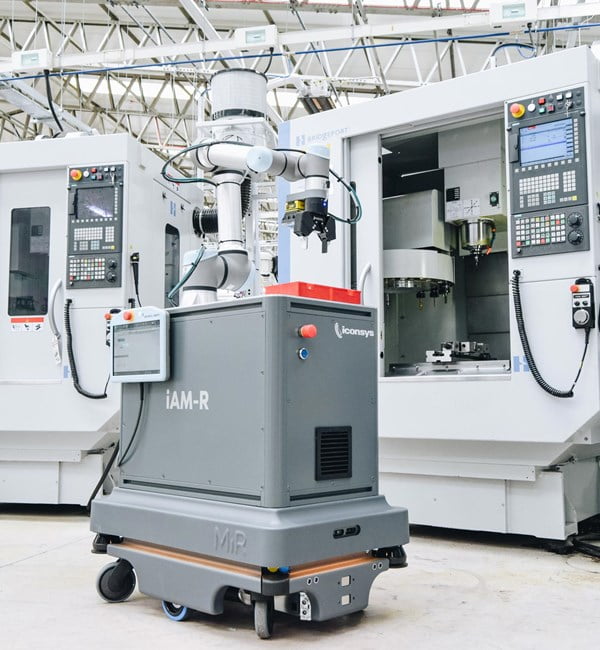

The iAM-R is unlike any robot available to industrial manufacturers today. More than just an AGV, this is automated and intelligent; fully mobile and with no need for tracks. But even better, each iAM-R comes with a modular interface which is individually built to serve your workplace. It means the interface is programmed with you in mind. It means the robot becomes one of your team.

iAM-R is unique in that it is quick to set up, easy to programme, flexible in performing isolated tasks or working as a group, it is adaptable to working requirements and collaborates working alongside staff.

Technical Details
Compatibility

Edit Content

Tecnical details:

Robot Arm Capabilities: 3kg, 5kg, 10kg*
Range of Motion: +/- 360-degree base rotation and a reach of 19” and +/- 360-degree base rotation and a reach of 33”
Degrees of Freedom: 6 rotating joints each with a +/- 360-degree range of freedom
Onboard I/O: 16 Digital out, 16 Digital input, 2 Analog out, 2 Analog in, 2 500 Hz control, 4 separated high speed quadrature digital inputs.
ModbusTCP, ProfiNet ,EthernetIP and USB ports: 1 USB 2.0, 1 USB 3.0
Wireless Communication: WiFi Dual-band wireless AC/G/N/B and Bluetooth 4.0 LE, range: 10-20m
Collaborative Operation: 17 advanced adjustable safety functions incl. elbow monitoring certified to Cat.3, PL d
Temperature Range: 5-50 °C / 41-122 °F
End of Arm Connectivity: I/O power supply in tool 12V/24V 600mA continuous, 2A peak
Battery: Up to 8 hours between charges
Options: Bespoke end of arm tooling, vision systems, additional battery

Edit Content

This application is compatible with:

MiR100
MiR200
