Product Description

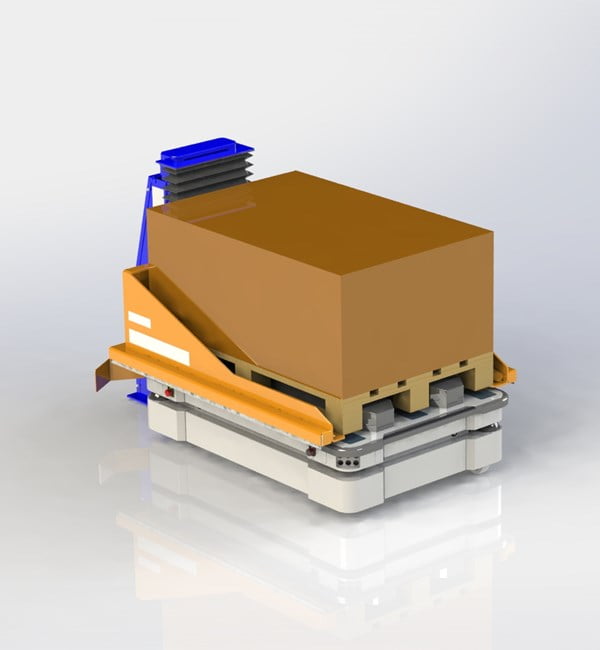

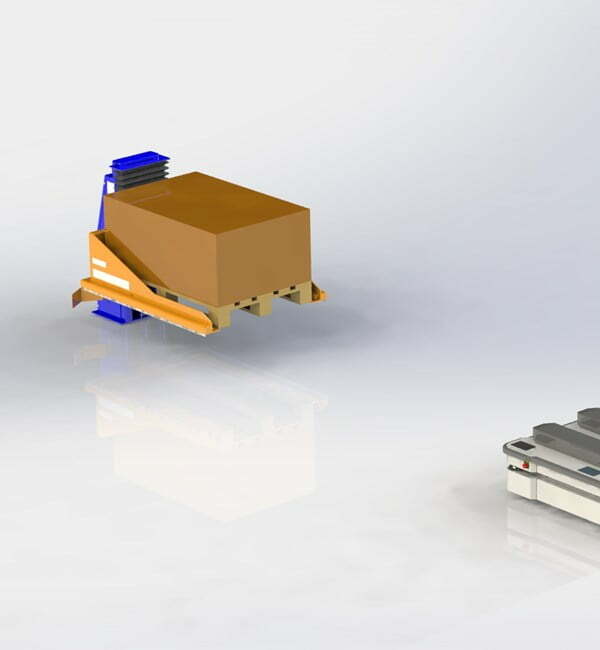

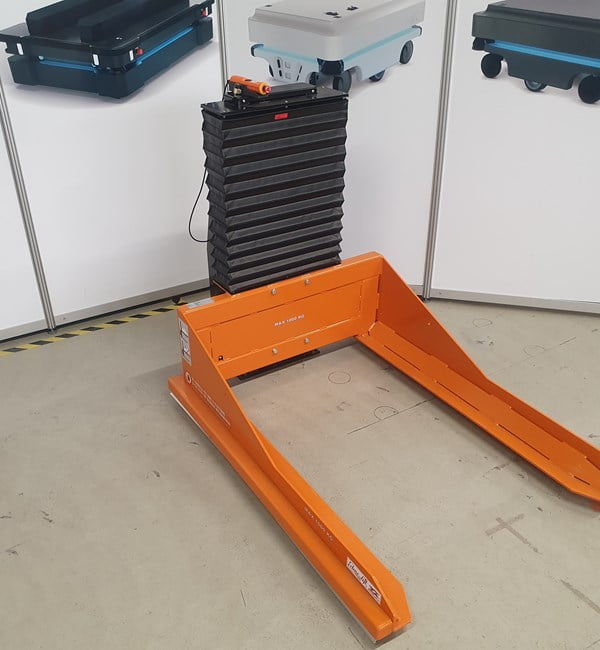

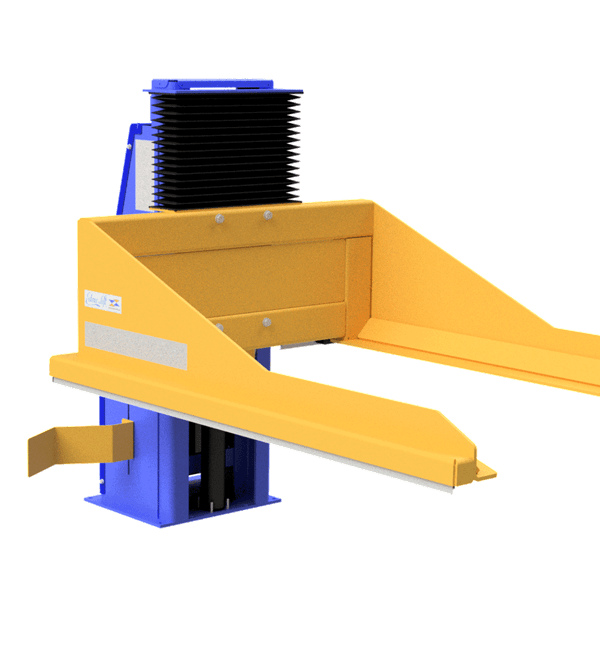

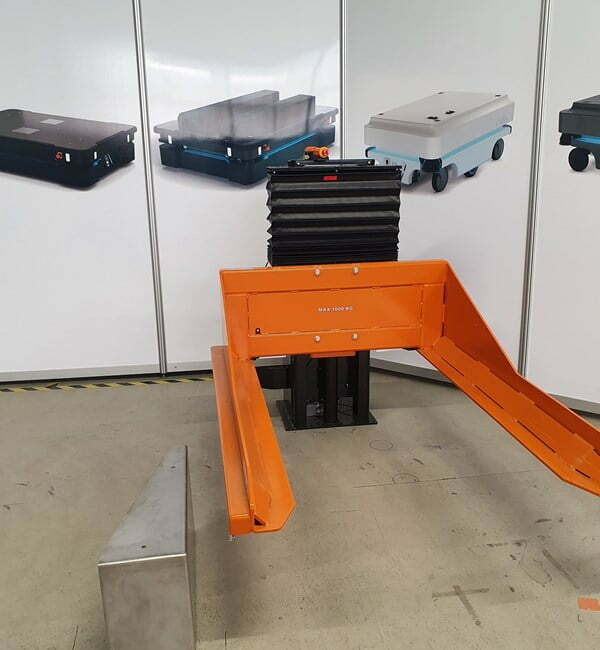

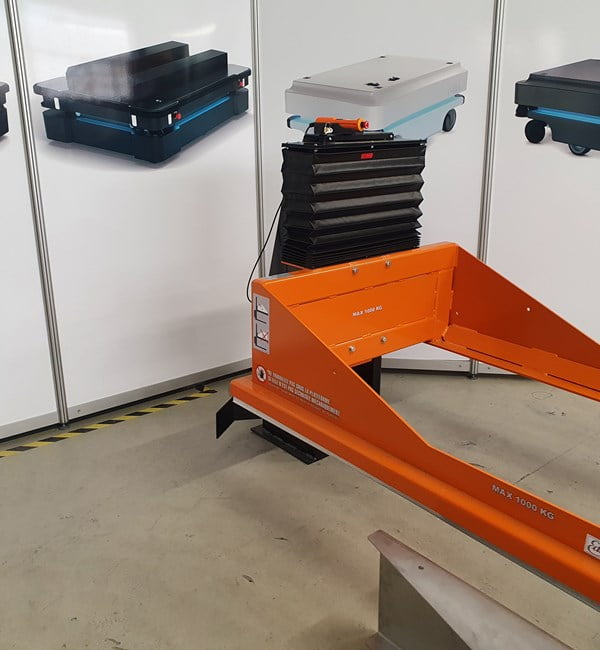

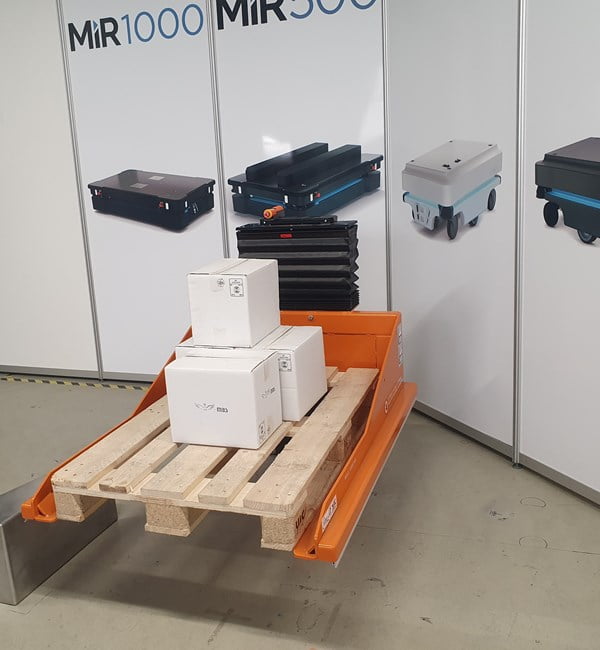

The TSL AMR is an intelligent system designed to make work easier, safer and more efficient for the operator.

It works as a height-adjustable docking station for the EUR pallets transported by MiR collaborative mobile robots.

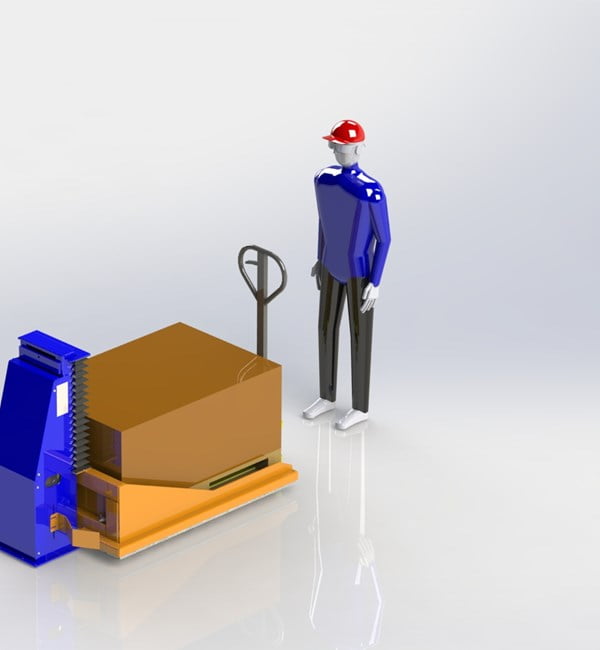

The MiR robot transfers the pallet to the dock, the operator can then lower the pallet to the ground and retrieve it with a hand pallet truck. The fork is then placed in its highest position again, a signal is sent to the MiR robot so that the next EUR pallet can be placed on the forks. Thanks to the intelligent design of the TSL-AMR, the closing height is only 70 mm above the ground, it equipped with a safety release bar on the sides of the fork for the protection of the feet of the operator.

Edit Content

Technical details:

  • Capacity 1000 kg
  • Lenght 1668 mm
  • Width 1042 mm
  • Height 1146 mm
  • Lift stroke 372 mm
  • Lowest height 70 mm
  • Load area lenght 1245 mm
  • Load area width 816 mm
  • Lifting time 15 secondes
  • Tension 220V single phase
Edit Content

This application is compatible with:

  • MiR500
  • MiR1000
