TR600/TR1000 for Continental AMR

We have a top roller module to suit all your conveyor solution needs.

The rollers are braked during transport which ensures safety and security of goods and people. For further safety, there are built-in barriers to protect fingers from being caught in the rollers.

GUARDCOM SYSTEM

GuardCom will revolutionize the way your AMRs transfer goods between stationary conveyor stations.

There are three types of built-in optical sensors:

Position sensors

ensure that packages are only leaving or on-boarding the top roller when the robot is positioned correctly in front the stationary conveyor station

Front cargo sensors

monitor packages leaving and on-boarding the top roller. Ensure that packages are safely on board before the robot takes off and during transport

Rear cargo sensors

detect and prevent packages from rolling off the top roller. Prevent the robot from driving if packages are not correctly placed

TR600/TR1000 for Continental AMR

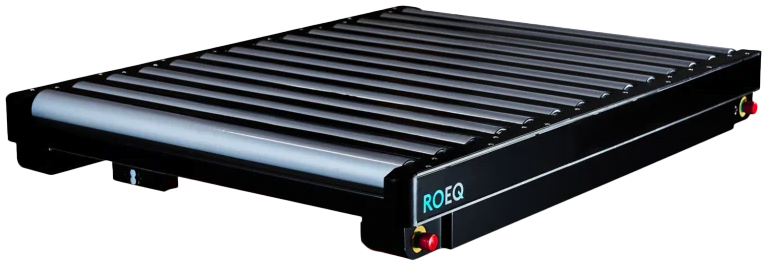

The ROEQ TR600 & TR1000 are heavy duty top rollers for your Continental IL-1200 robot. They can pick up and deliver heavy goods between conveyor stations on your production line and are ideal for transporting US and euro pallets.

Robot compatibility:
Continental IL-1200

ROEQ product compatibility:
GuardCom System, Side Bars, Long Cargo Kit, Height Kit

Payload:
TR600: 600 kg / 1323lbs
TR1000: 1000 kg / 2205lbs

Features:

Two package function: The TR1000 can handle and deliver two packages individually
Flat top designed to allow transfer of wide loads
Side Bars and Long Cargo Kit are available for different load types
Height Kit is available to increase the height of the Roller to match the receiving station

See product data sheet for more features, specifications and drawings
