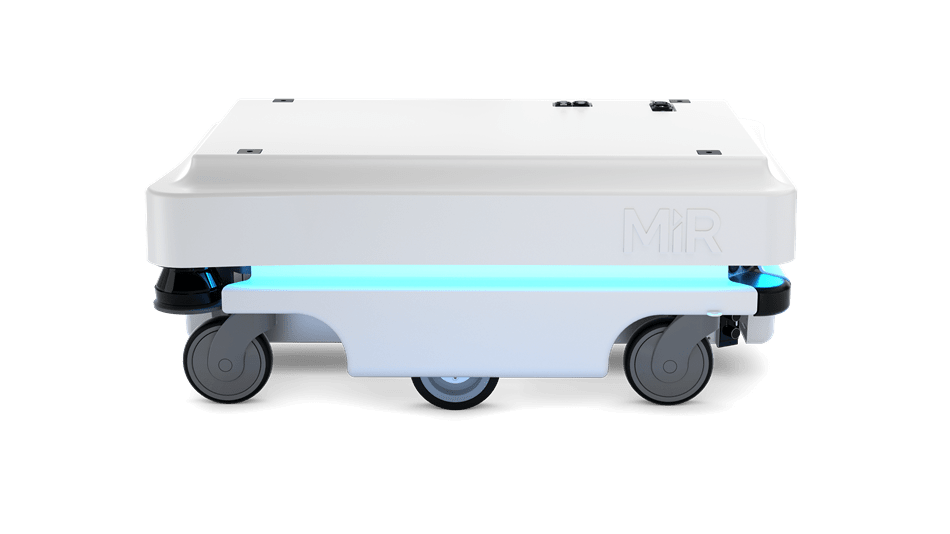

Cost-effective, safe AMR for smaller loads

The MiR100 is a safe, cost-effective mobile robot that quickly automates your internal transportation and logistics. The robot optimizes workflows, freeing staff resources so you can increase productivity and reduce costs.

Quick facts about the MiR100

Max. speed

1.5 m/s

Run time

10 hours


100 kg


890 mm x 580 mm

Edit Content
It is simple and straightforward to set up the Robotic Lab Assistant, create a map, and teach the robot to interact with the hardware in a laboratory. Once this is done, our workflow scheduling software ensures that any member of the laboratory staff can set up a workflow to utilise the robot.It is straightforward to switch the Robotic Lab Assistant between one workflow and another depending on demand. If a completely different requirement arises, grippers can be swapped out and flasks, beakers or tubes could be handled as well as SBS plates.
Edit Content
Designated useAutonomous mobile robot (AMR) for internal transportation of smaller loads
ColorABS 542D / ATHLONE White (RAL9003)
DisclaimerSpecifications may vary based on local conditions and application setup
Length890 mm | 35 in
Width580 mm | 22.8 in
Height352 mm | 13.9 in
Ground clearance50 mm | 2 in
Weight77 kg | 170 lbs
Maximum payload100 kg | 220 lbs (maximum 5% incline)
Maximum speed1.5 m/s (5.4 km/h) | 4.9 ft/s (3.6 mph)
Operational corridor widthWith default setup: 1 000 mm | 39.4 in
Traversable gap toleranceUp to 20 mm | 0.79 in
Active operation time with no payloadUp to 9 h (standard battery), up to 13 h (extended battery)
Standby time (robot is on and idle)Up to 13 h (standard battery), 23 h (extended battery)
Maximum incline/decline± 5% at 0.5 m/s
Battery typeLi-Ion, 24V, 33.6 or 56 Ah
Charging ratioUp to 1:6
Charging currentUp to 25 A
Number of full charging cyclesMinimum 1 000 cycles
EnvironmentFor indoor use only
Ambient temperature range, operation5–40°C | 41–104°F
Humidity10-85% non-condensing
IP ClassIP 20
Floor conditionsNo water, no oil, no dirt
EMCEN61000-6-2 and EN61000-6-4
CleanroomClass 4 (ISO 14644-1)
Safety standards for industrial vehiclesCE, EN1525, ANSI B56.5, RIA15.08
WiFi2.4 GHz 802.11 g/n, 5 GHz 802.11 a/n/ac.
I/O connectionsUSB and Ethernet
SICK safety laser scanners2 pcs, S300 (front and rear), give 360° visual protection around the robot
3D cameras2 pcs, 3D camera Intel RealSense D435 | 2–70.9 in
Signal and status lightsIndicator lights on four sides
